These Paron JX-D5301S Multifunctional Crimping Tools are a smart choice for the technician on the move, with interchangeable dies that cover a wide range of the most popular crimp terminals you have everything you need in one smart carry case to get the job done. Made from high quality steel with cushioned handles and an easy to use ratchet mechanism. Able to cope with a wide range of terminals or crimp connectors.

Don't need the complete kit? check out our for individual crimpers.

Don't need the complete kit? check out our for individual crimpers.

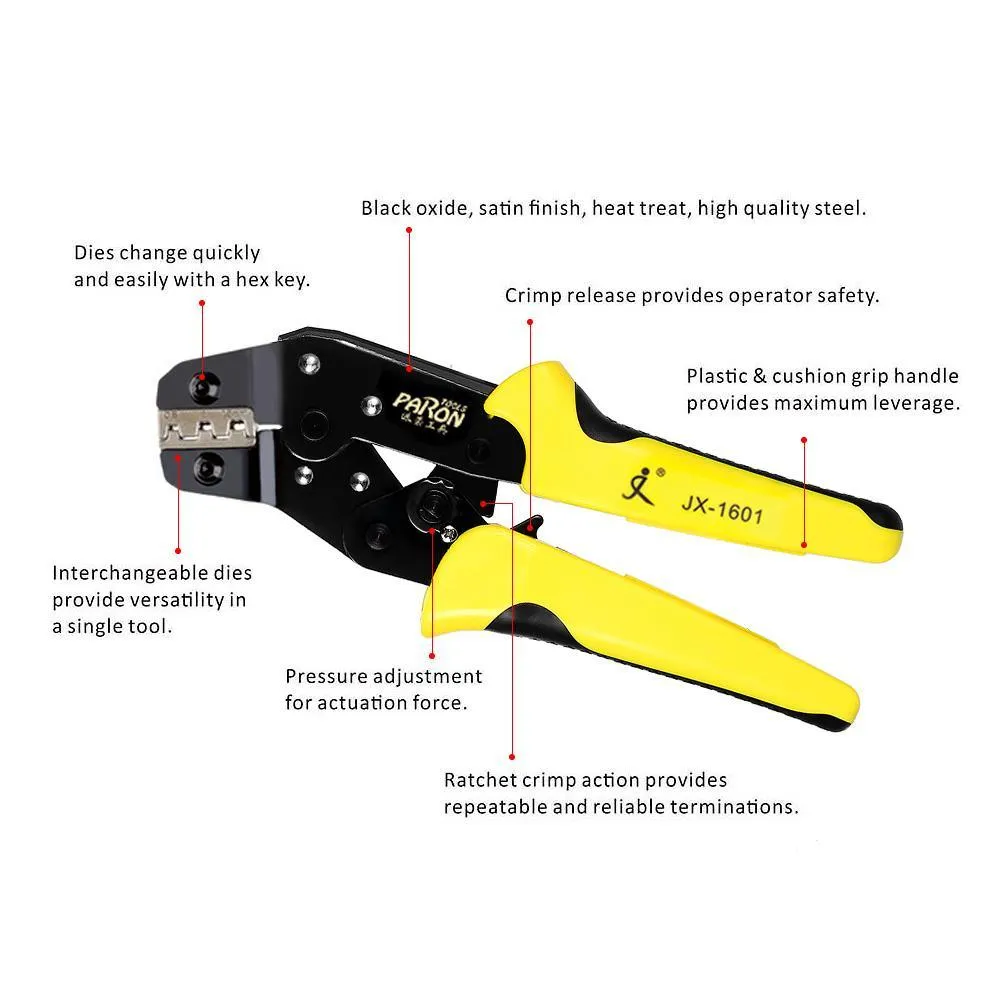

Features:

• Made of manganese steel material, durable and solid, easy to use.
• Professional Ratchet Crimping Tool Kit
• Integral Lock with Self Releasing Mechanism
• Easy to use mechanism
• Plastic and Cushioned grips for comfort and leverage
• Pressure adjustment for actuation force

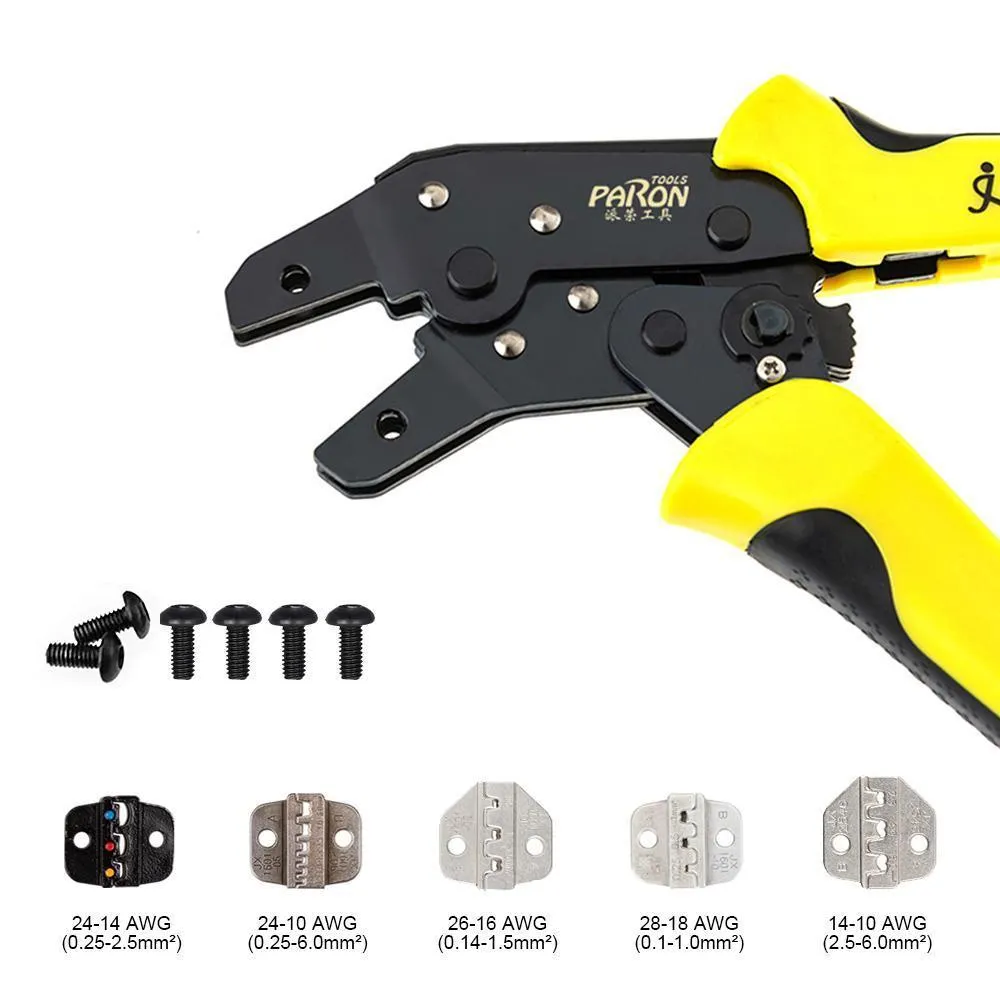

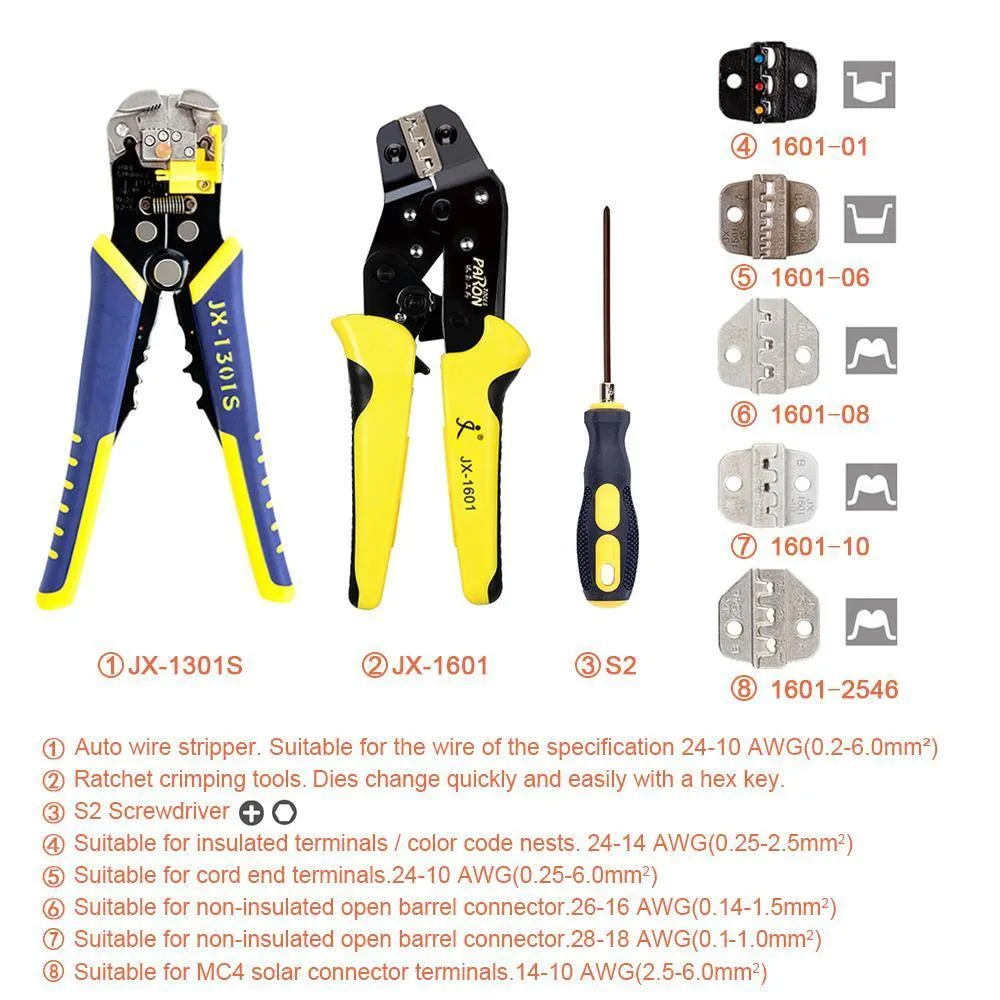

• 5x JX-1601 dies (JX-1601-01, JX-1601-06, JX-1601-08, JX-1601-10, JX-1601-2546)

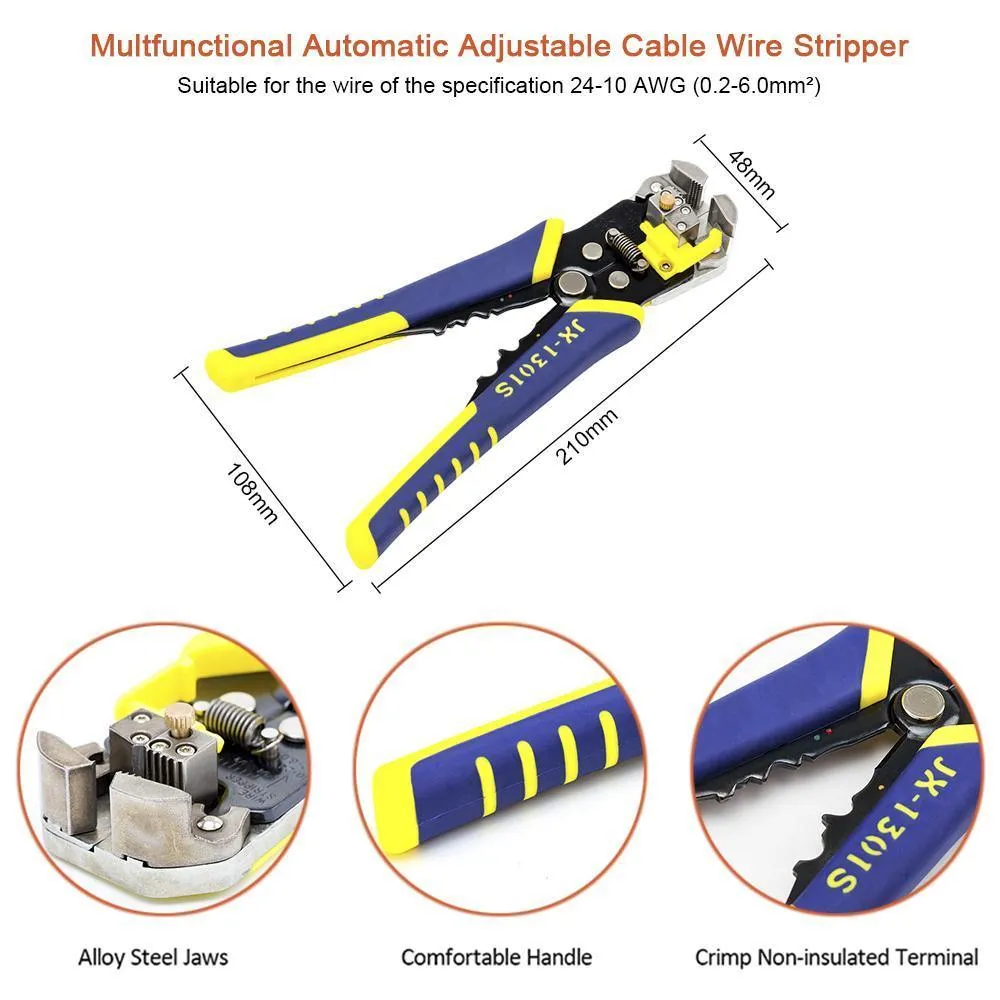

• 1x Multifunction Wire Strippers, featuring Alloy Steel Jaws, Comfortable Handle and Non-insulated terminal crimper

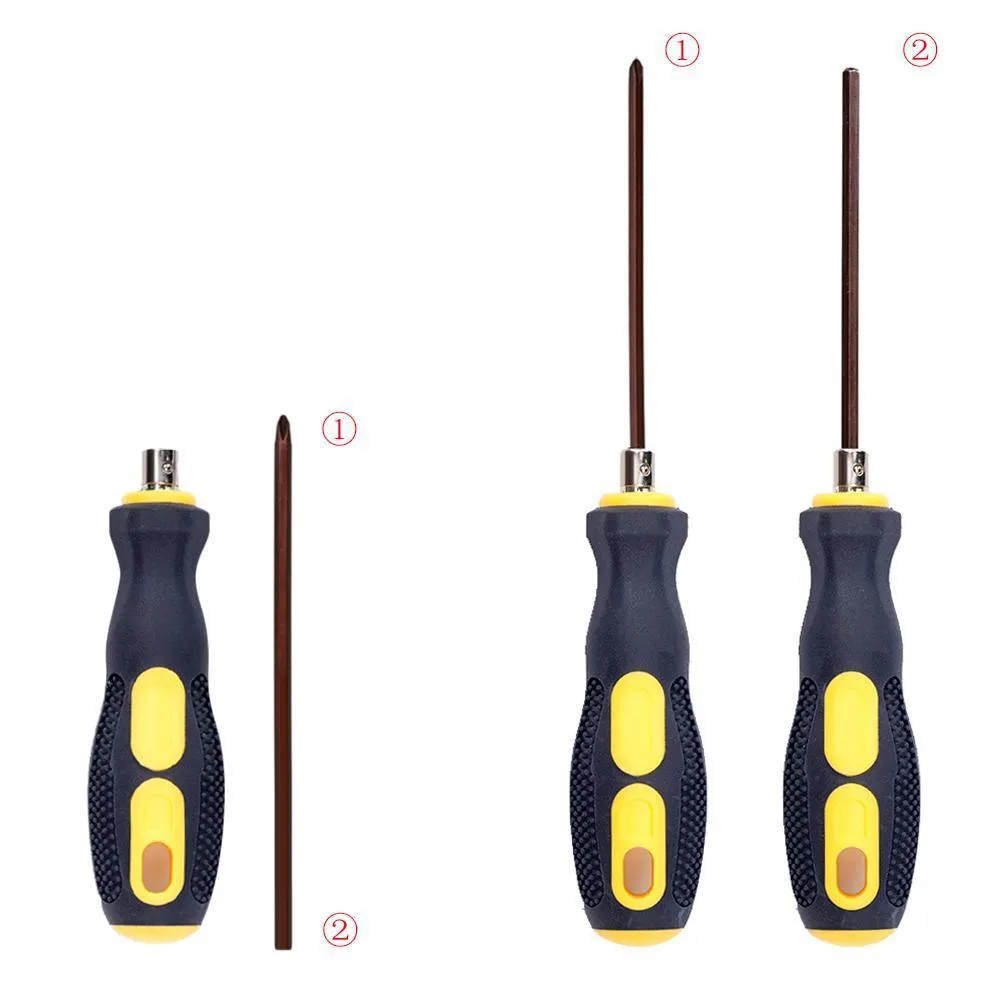

• 1x Screwdriver

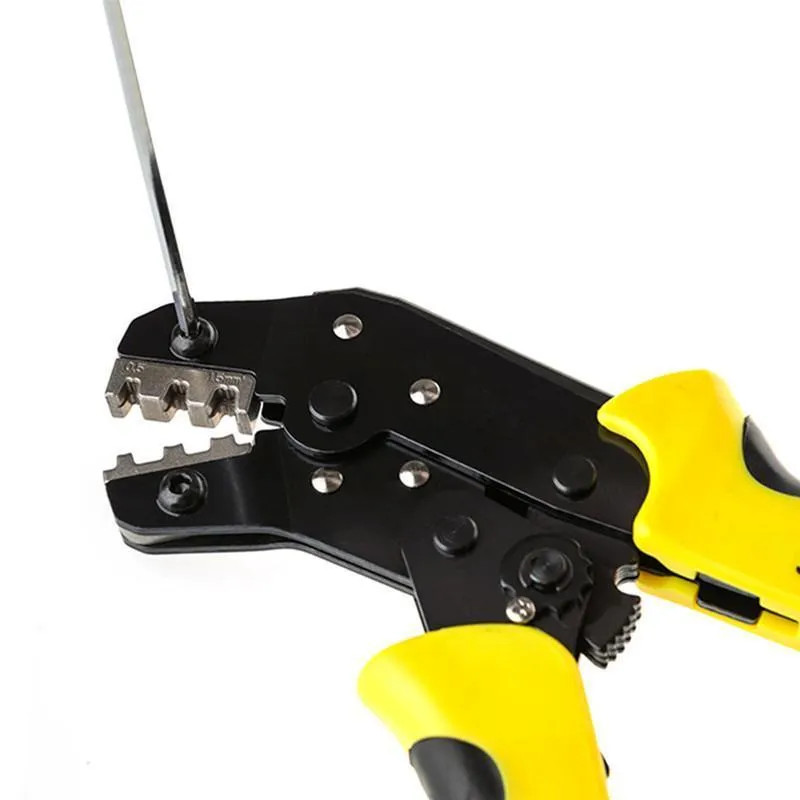

• Dies change quickly and easily with the included Screwdriver.
• Ideal for electricians, electrical maintenance, manufacturing enterprises, network engineers and more.

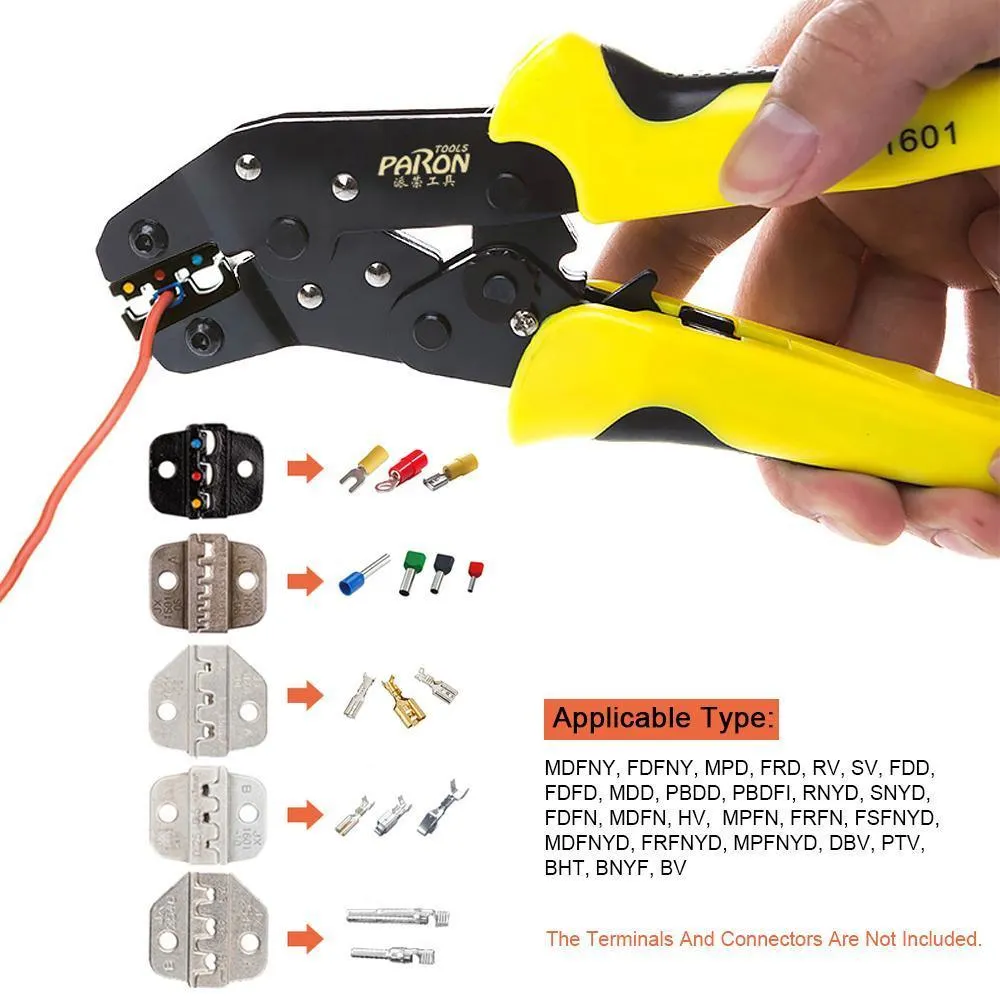

• Suits MDFNY, FDFNY, MPD, FRD, RV, SV, FDD, FDFD, MD, PBDD, PBDFI,RNYD, SNYD, FDFN, MDFN, HV, MPFN, FRFN, FSFNYD, MDFNYD, FRFNYD, MPFNYD, DBV, PTV, BHT, BNYF and BV terminals.

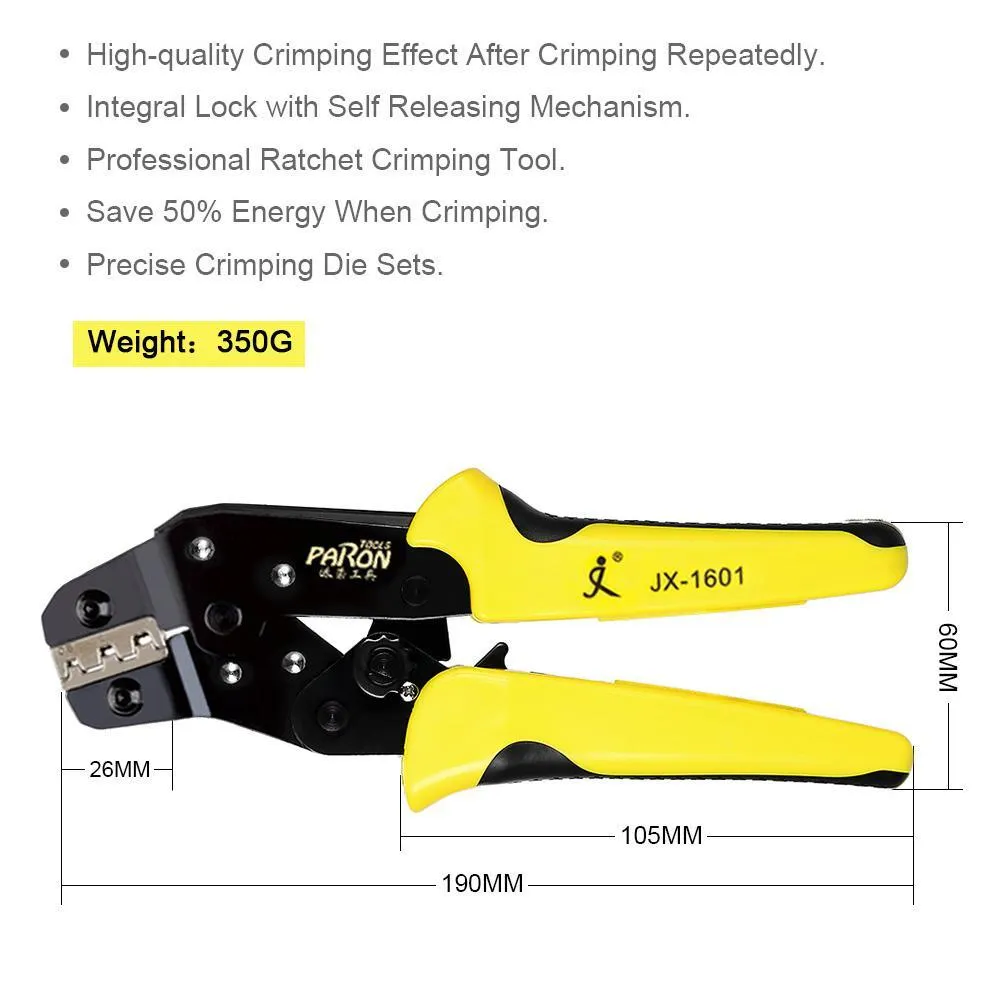

Specifications:

• Brand: Paron
• Model: JX-D5301S
• Material: Manganese steel
• Size: 200 * 150mm
• Weight: 1000g

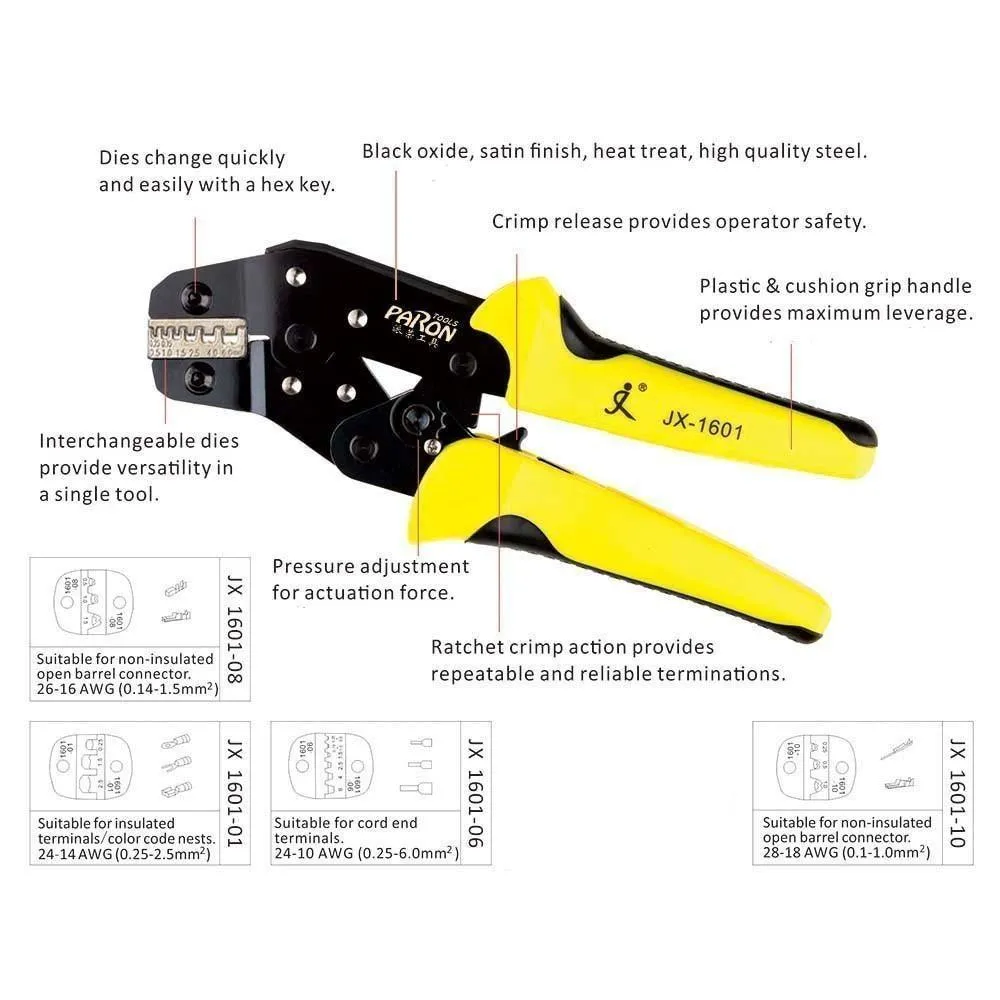

• Crimping ranges:
• JX-1601-01
• Crimping Range: 24-14 AWG (0.25-2.5mm²)
• Suitable Terminals: Color Code Nests Insulated Terminals
• Max Thickness: 9mm/0.35”
• Min Thickness: 4mm/0.16”
• JX-1601-06
• Crimping Range: 24-10 AWG (0.25-6.0mm²)
• Suitable Terminals: Cord End Terminals
• Max Thickness: 12mm/0.47”
• Min Thickness: 4mm/0.16”
• JX-1601-08
• Crimping Range: 26-16 AWG (0.14-1.5mm²)
• Suitable Terminals: Non-insulated Open Barrel Connector
• Max Thickness: 7mm/0.28”
• Min Thickness: 4mm/0.16”
• JX-1601-10
• Crimping Range: 28-18 AWG (0.1-1.0mm²)
• Suitable Terminals: Non-insulated Open Barrel Connector
• Max Thickness: 7mm/0.28”
• Min Thickness: 4mm/0.16”
• JX-1601-2546
• Crimping Range: 14-10 AWG (2.5-6.0mm²)
• Suitable Terminals: MC4 Solar Connector Terminals
• Max Thickness: 6mm/0.24”
• Min Thickness: 4mm/0.16”

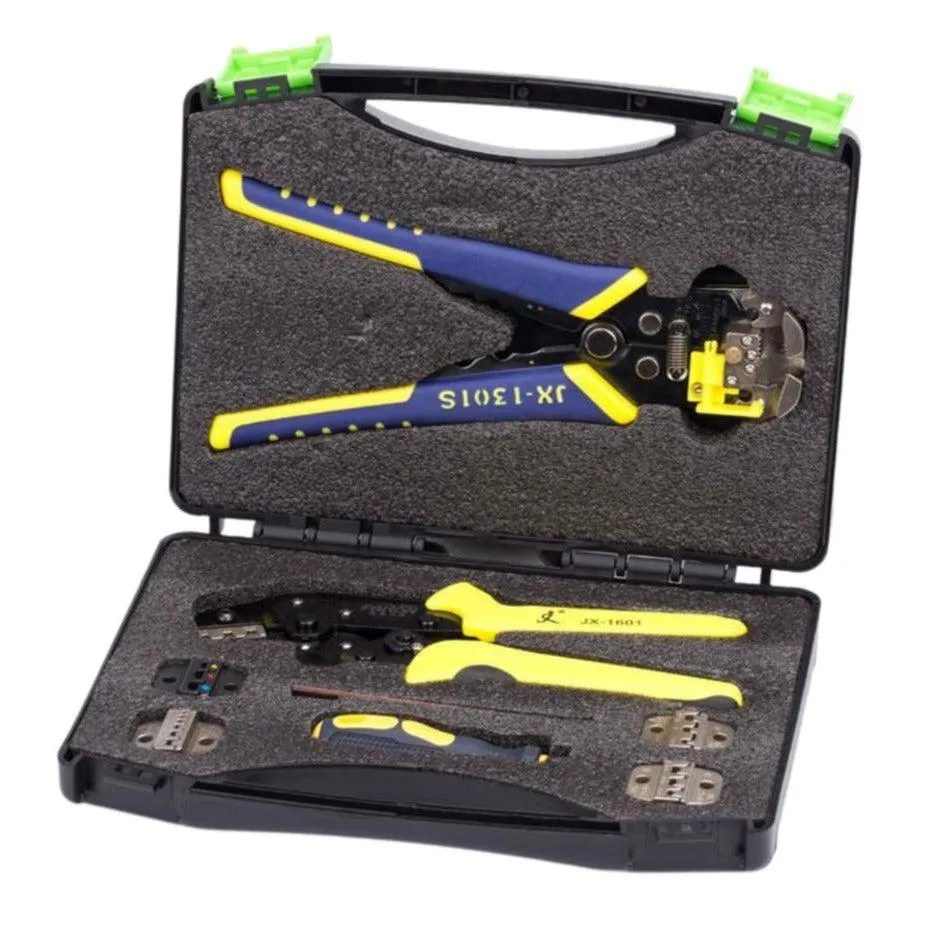

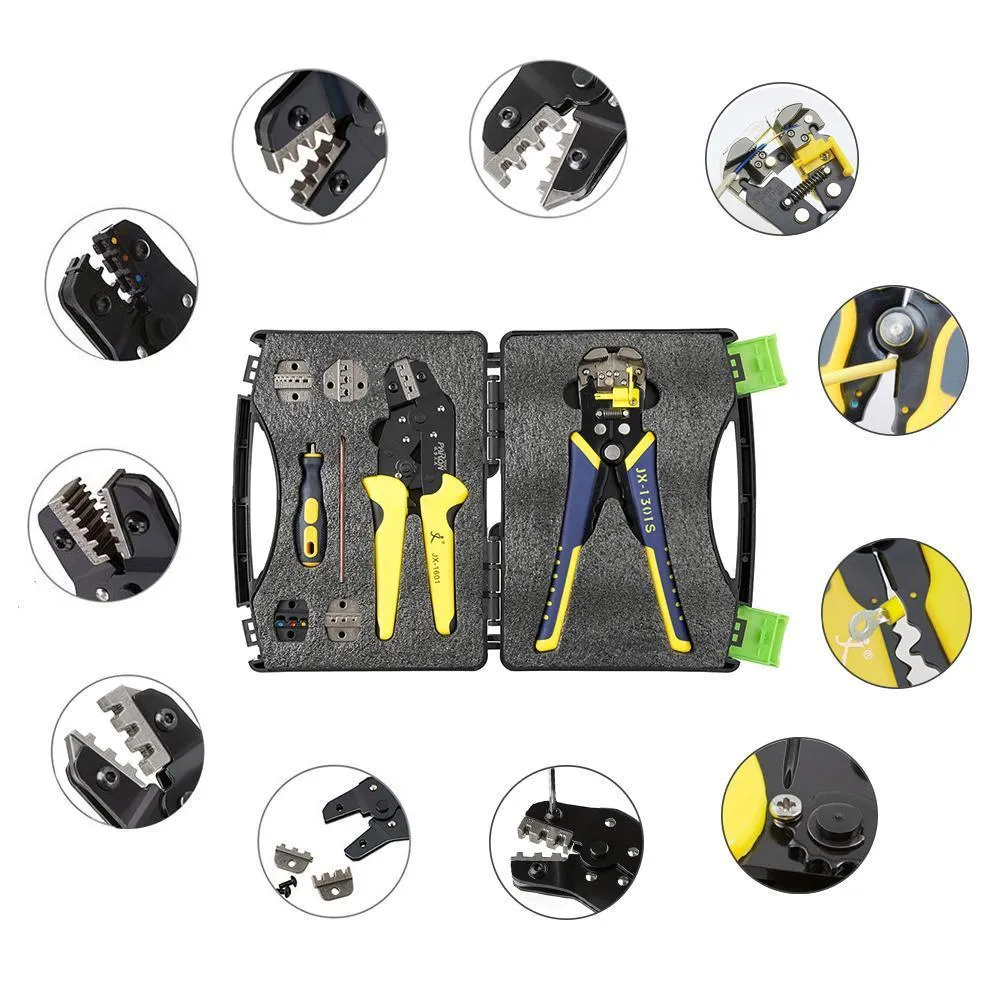

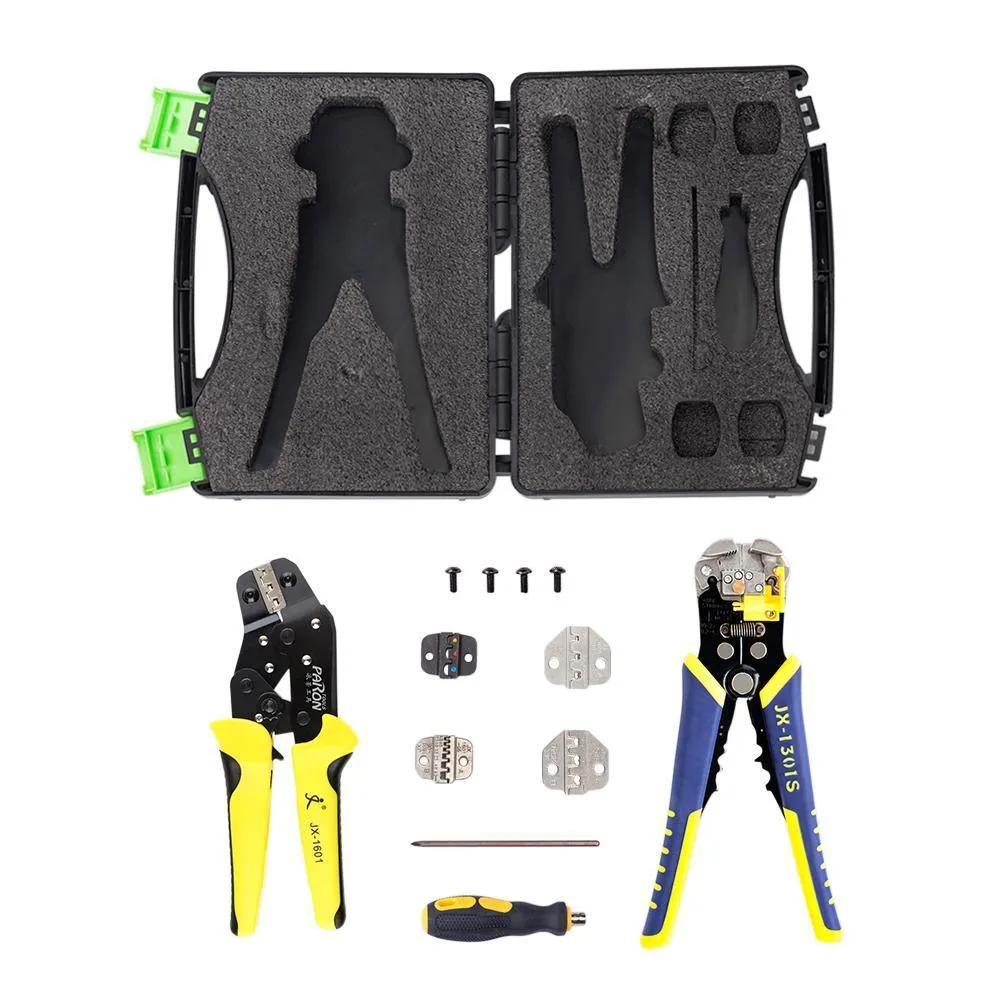

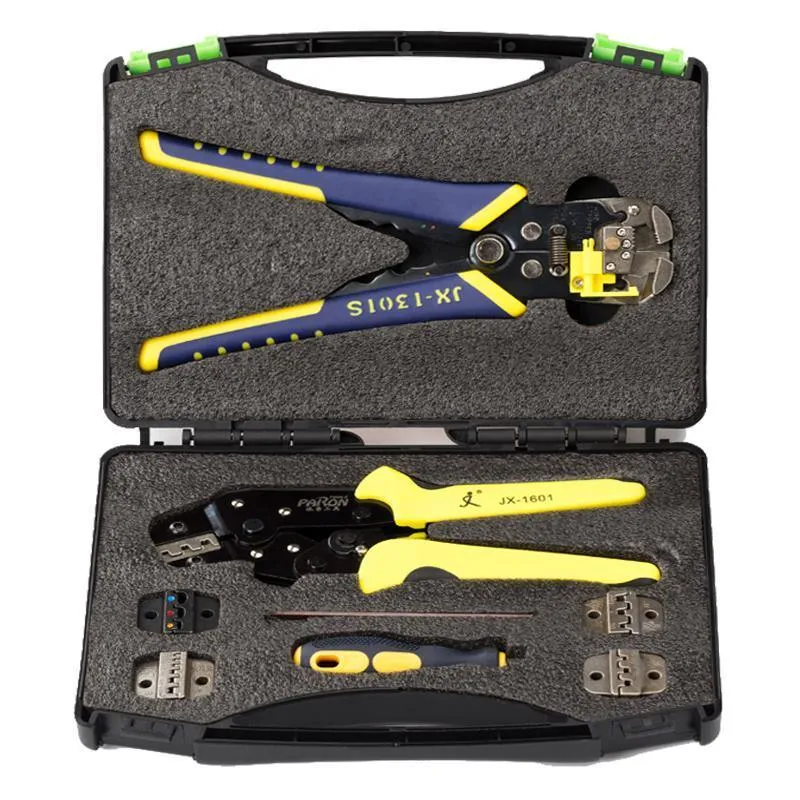

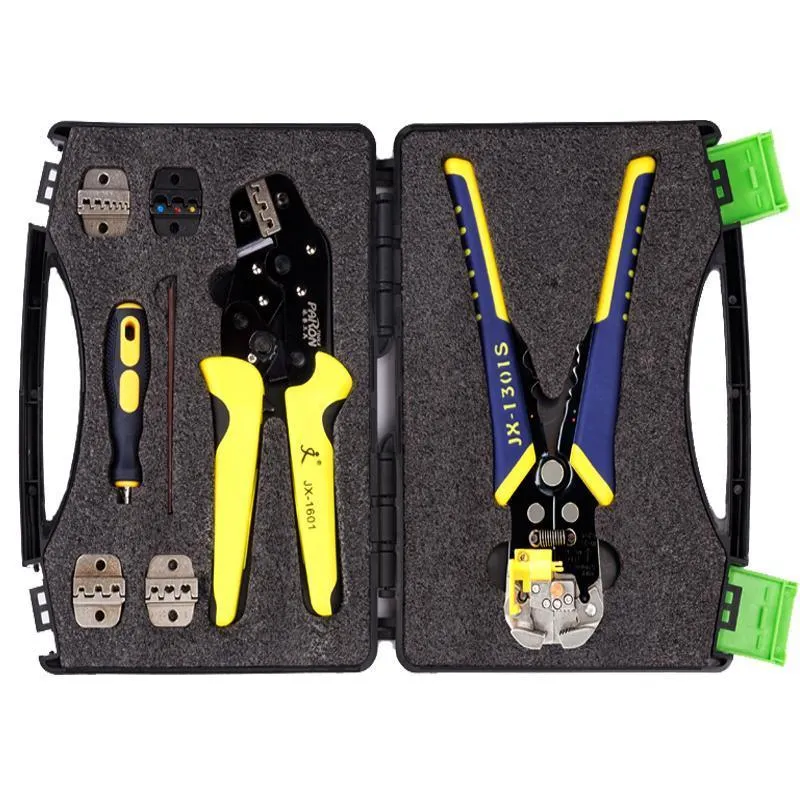

Package includes:

• 1pc Ratchet Crimping Tool
• 1pc Multifunction Wire Strippers
• 1pc Screwdriver
• 1pc JX-1601-01 Die
• 1pc JX-1601-06 Die
• 1pc JX-1601-08 Die
• 1pc JX-1601-10 Die
• 1pc JX-1601-2546 Die

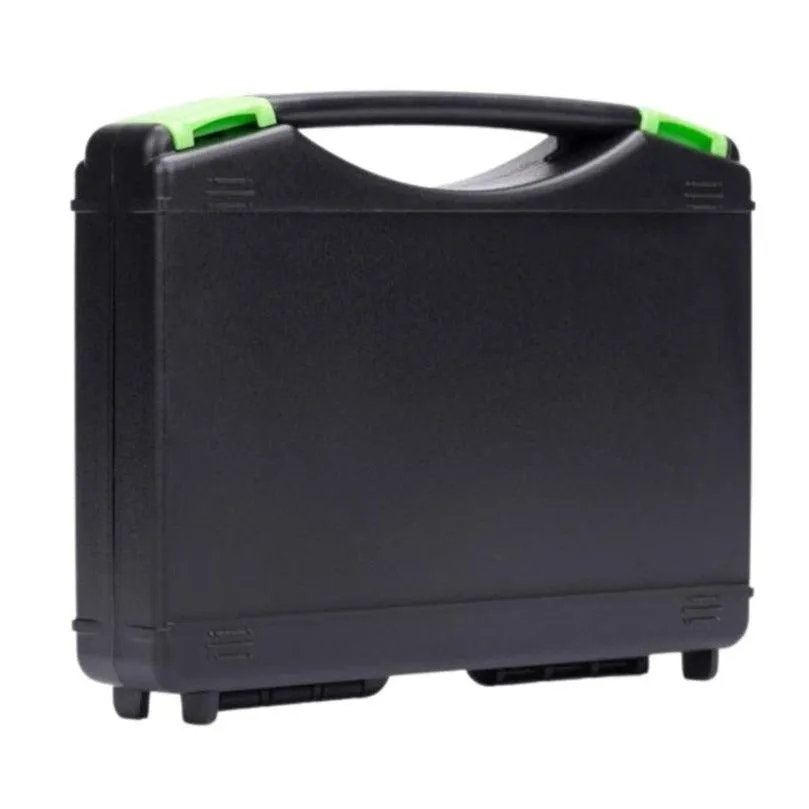

• Carry Case
